Type
Graduate design studio — ARCH 571, Spring 2026
Role
I managed concept, design, form iteration, mold generation and the environmental analysis, while my partner Tom focused on species selection and research, concrete casting and mix design.
Tools
Rhino · Grasshopper · Ladybug · Wallacei X · Enscape · 3D printing · Concrete casting
Program
Cast-concrete nesting panel system for cliff swallows, River Park, Chicago
Status
Completed studio project — modules cast and demolded

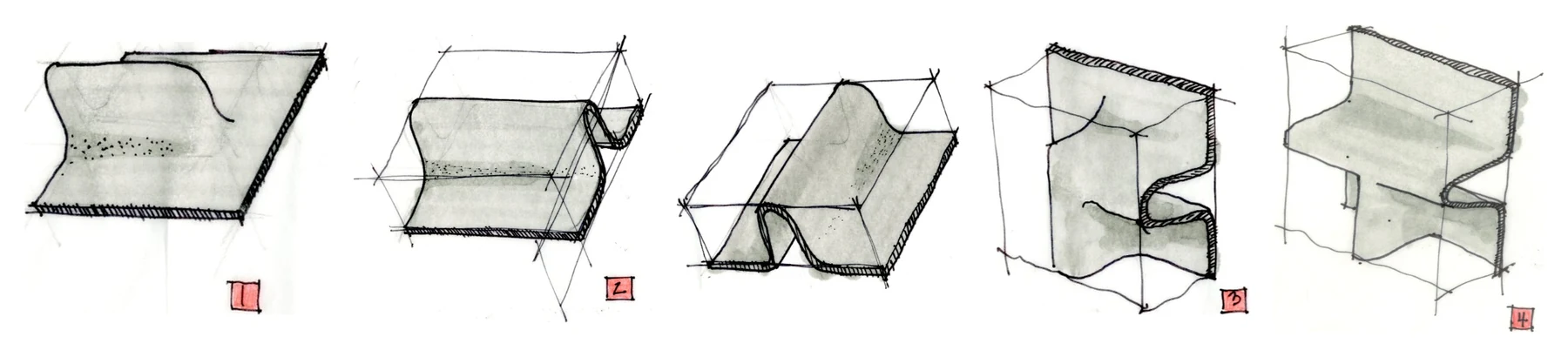

Pen and grey-marker sketches in sequence: a sheet curved into an S, a folded lip, the lip as a ridge, an S-profile cut through a sheet, the module block.
Fig. 01 — Concept sketches: from curved sheet to S-profile module.
01 / Client
Species

The client is the cliff swallow, Petrochelidon pyrrhonota — a compact songbird 5–6 in long with a 12 in wingspan that breeds across the United States and western Canada and winters in South America. In the Chicago region swallows arrive between late April and mid-May and nest from May to July. Research began with three candidate species and narrowed to the swallow, a colonial bird that already builds on cliffs, bridges and the sides of buildings.

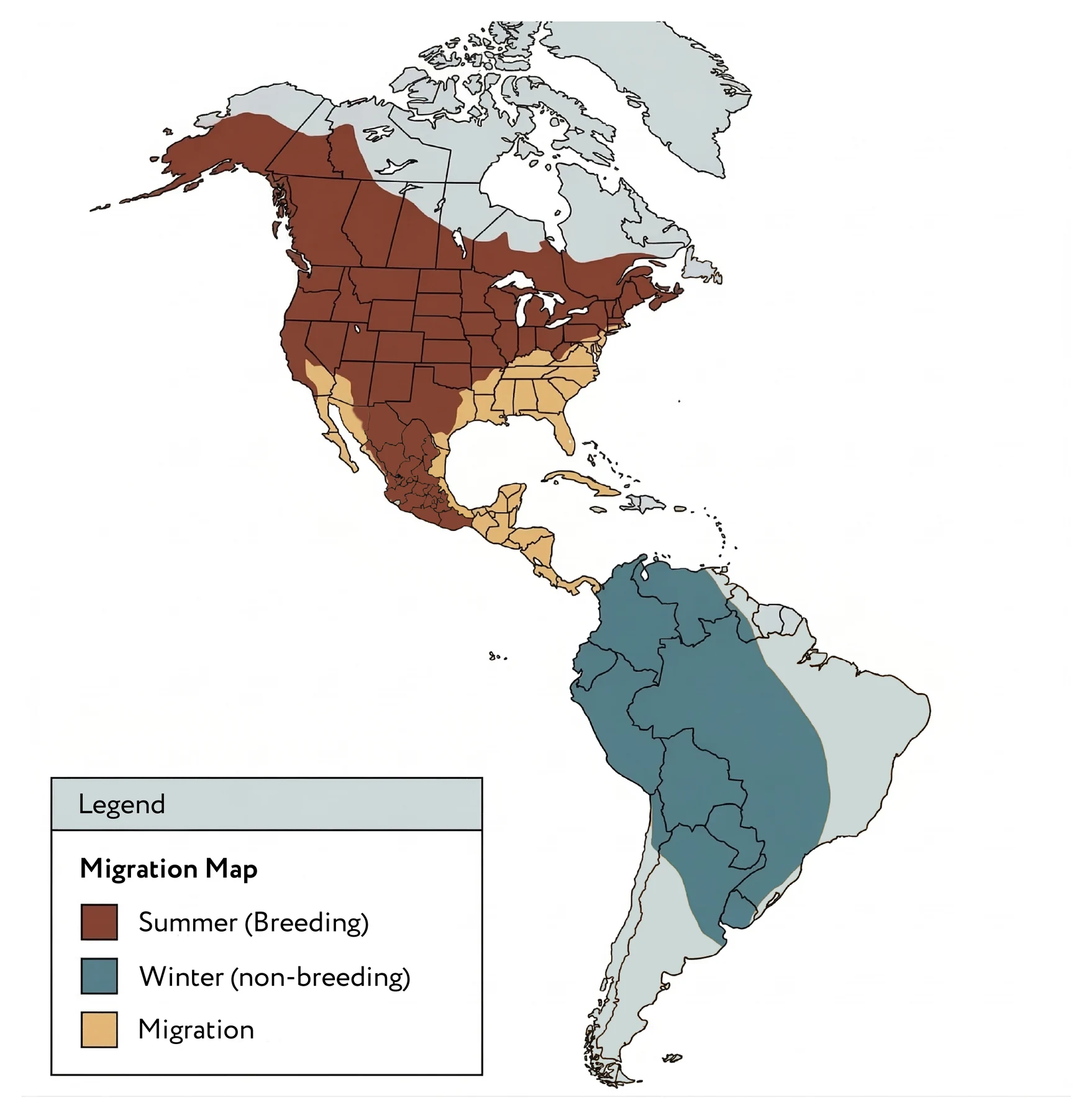

Map of the Americas shading the cliff swallow's breeding range across North America, its migration route through Central America and its winter range in South America.
Fig. 02 — Cliff swallow migration map: breeding, migration and winter ranges across the Americas.
Behavior

Cliff swallows build gourd-shaped mud nests in colonies on vertical surfaces, gathering mud from nearby water that is also where they find insects. The roosting brief reduces to two sets of considerations: a vertical surface, cover and environmental protection, and a place near water, elevated and with room for a colony. Offspring do better when parents reuse an existing nest, so a surface that holds old nests season after season is part of the brief.

02 / Concept
Starting point

Initial concepts took a direct approach to housing: a smokestack of stacked spheres, soffit beams of interlocking nest blocks and a breeze-block screen wall with feeder, house and planter inserts. The breeze blocks were the most developed, but they set a rigid grid. The work turned to breaking that grid with more organic shapes, with Greg Lynn's Blob Wall Pavilion pinned in the sketchbook as inspiration.

Crane fly standing on still water, concentric rings spreading outward from its legs, with a blurred tree line and shore behind.
Fig. 03 — Ripples on still water, spreading in rings from a crane fly's legs.
Rings of reflected light from rippling water thrown across a board-formed concrete wall, with the water's edge and a faint ripple below.
Fig. 04 — Ripples thrown as rings of light across a board-formed concrete wall.
Surface

Ripples on the water describe the creek's currents, and thrown as light onto a vertical concrete wall above the river they became the design concept. A flat sheet is pulled into an S-curve and folded into a horizontal lip, giving the overhangs that swallows read as vertical security. The first cast test panel, a 4 × 5 grid of tiles, carried one continuous channel across its joints.

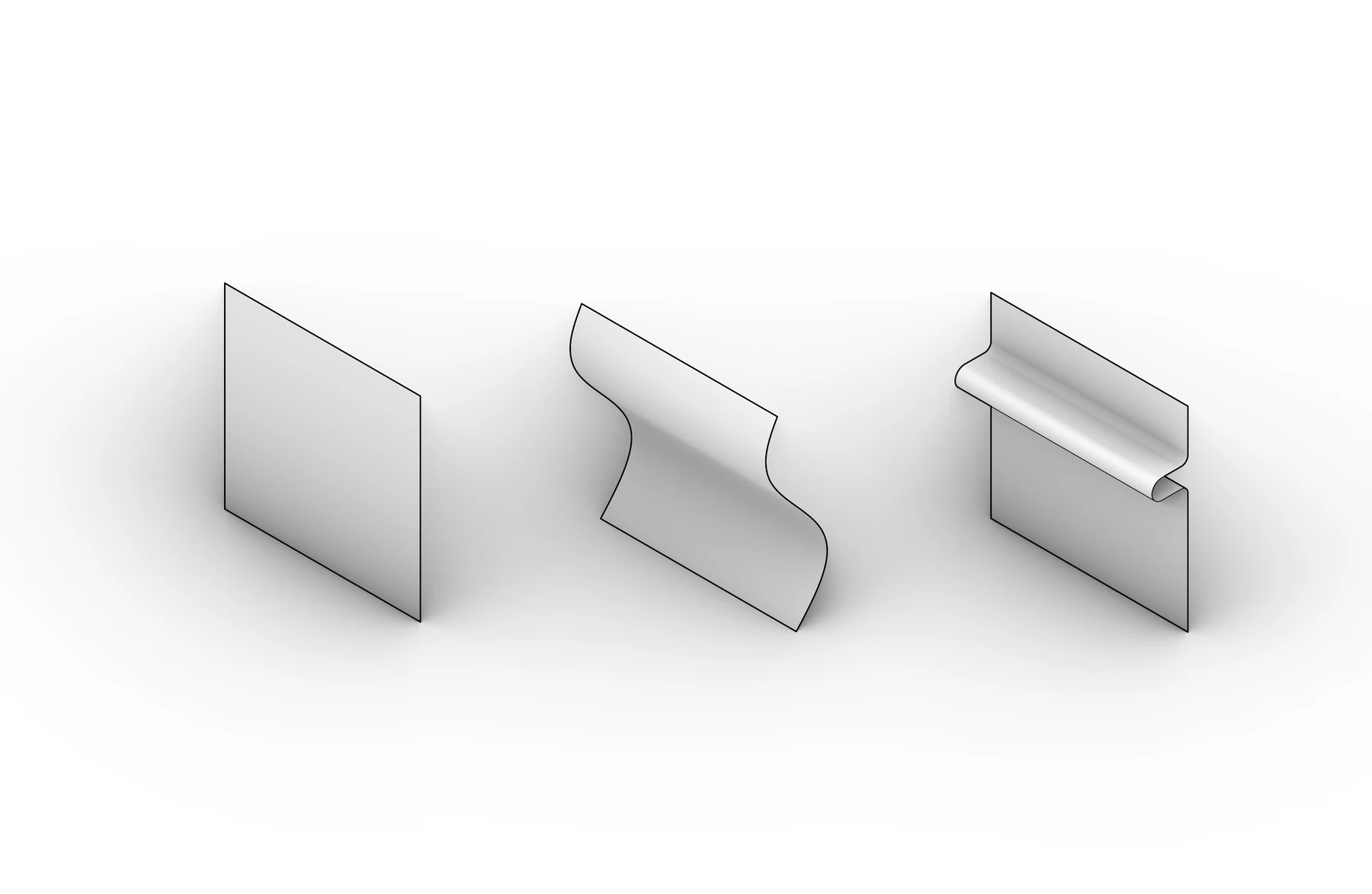

Axonometric sequence in which a flat vertical sheet is bent into an S-curve and then folded into a horizontal lip.
Fig. 05 — Ripple concept: a flat sheet curved into an S, then folded.

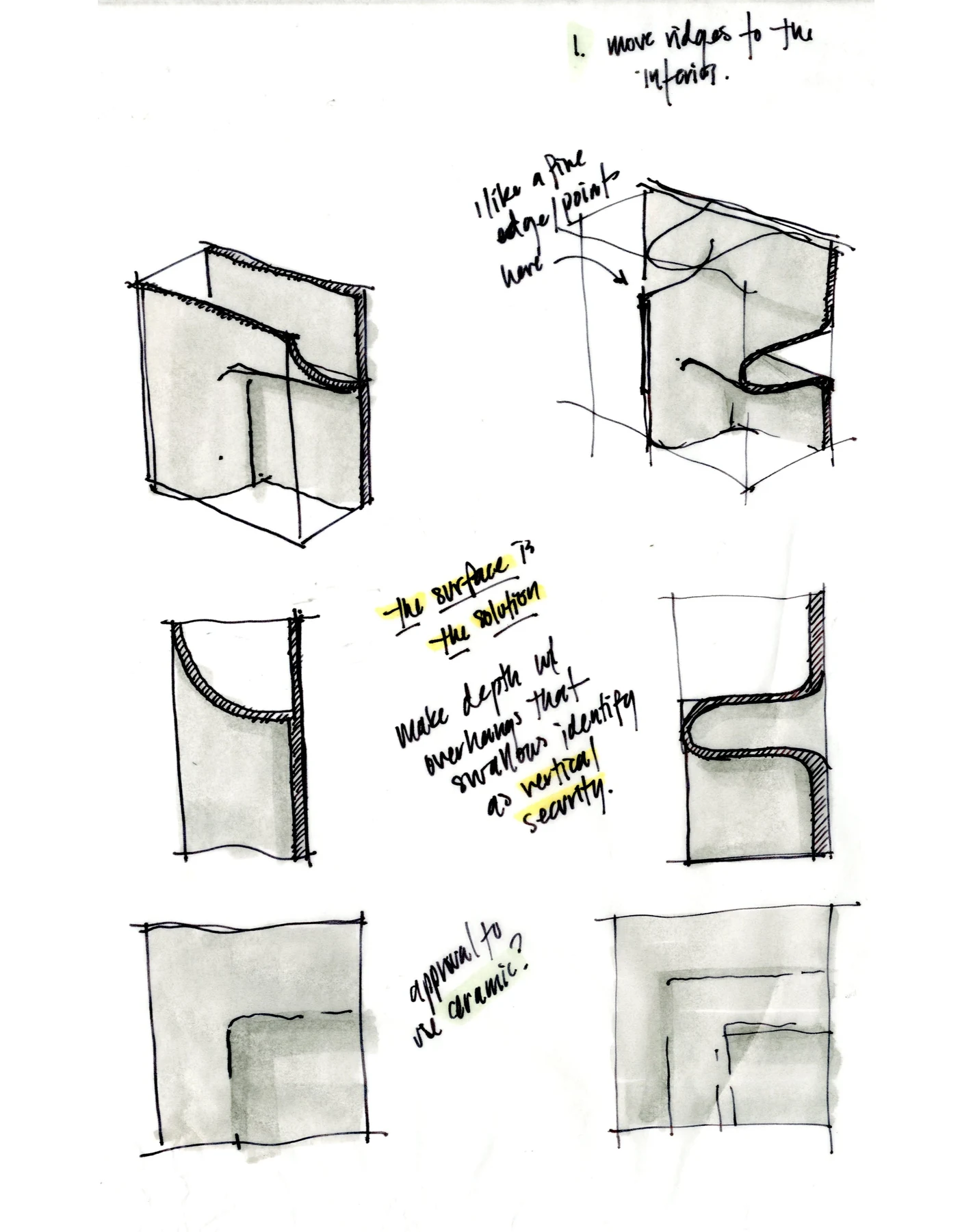

Pen and marker sketches of folded concrete components with overhangs, annotated by hand with the note "the surface is the solution."
Fig. 06 — Component sketches, annotated "the surface is the solution."

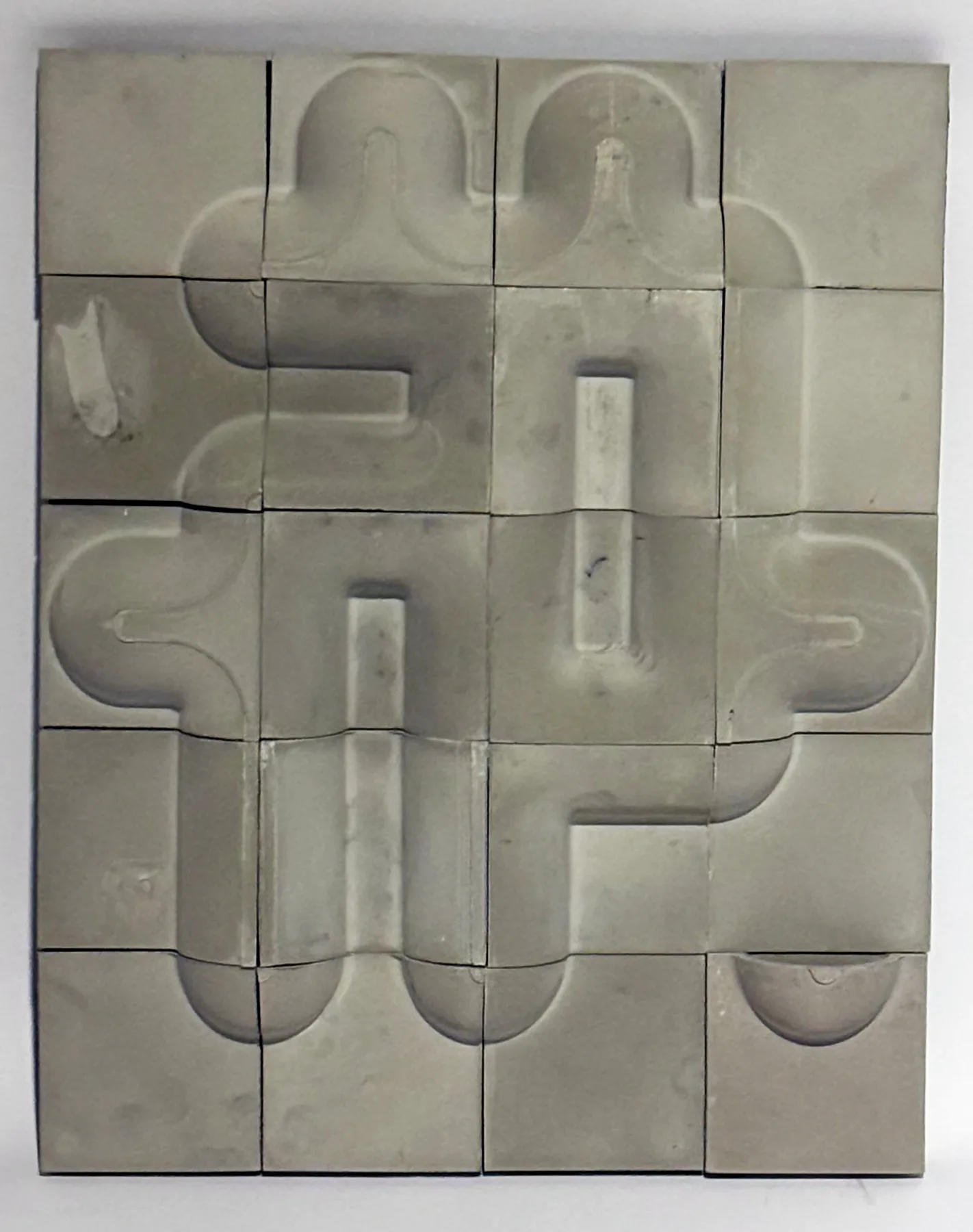

Cast concrete test panel of twenty square tiles mounted on a white wall, with rounded relief channels running continuously across the joints.
Fig. 07 — First cast test panel, Surface Divided: a 4 × 5 grid of tiles.
03 / Component
Modules

Three modules make the system. Module 1, "Burrito", is the standard pipe, and Module 2, "T-Bone", creates an intersection of multiple lines so a run of pipe can branch and close into cells. Module 3, "Plate", expands the spaces between the barrels to create habitat, and its ripple noise pattern references the riparian surface.

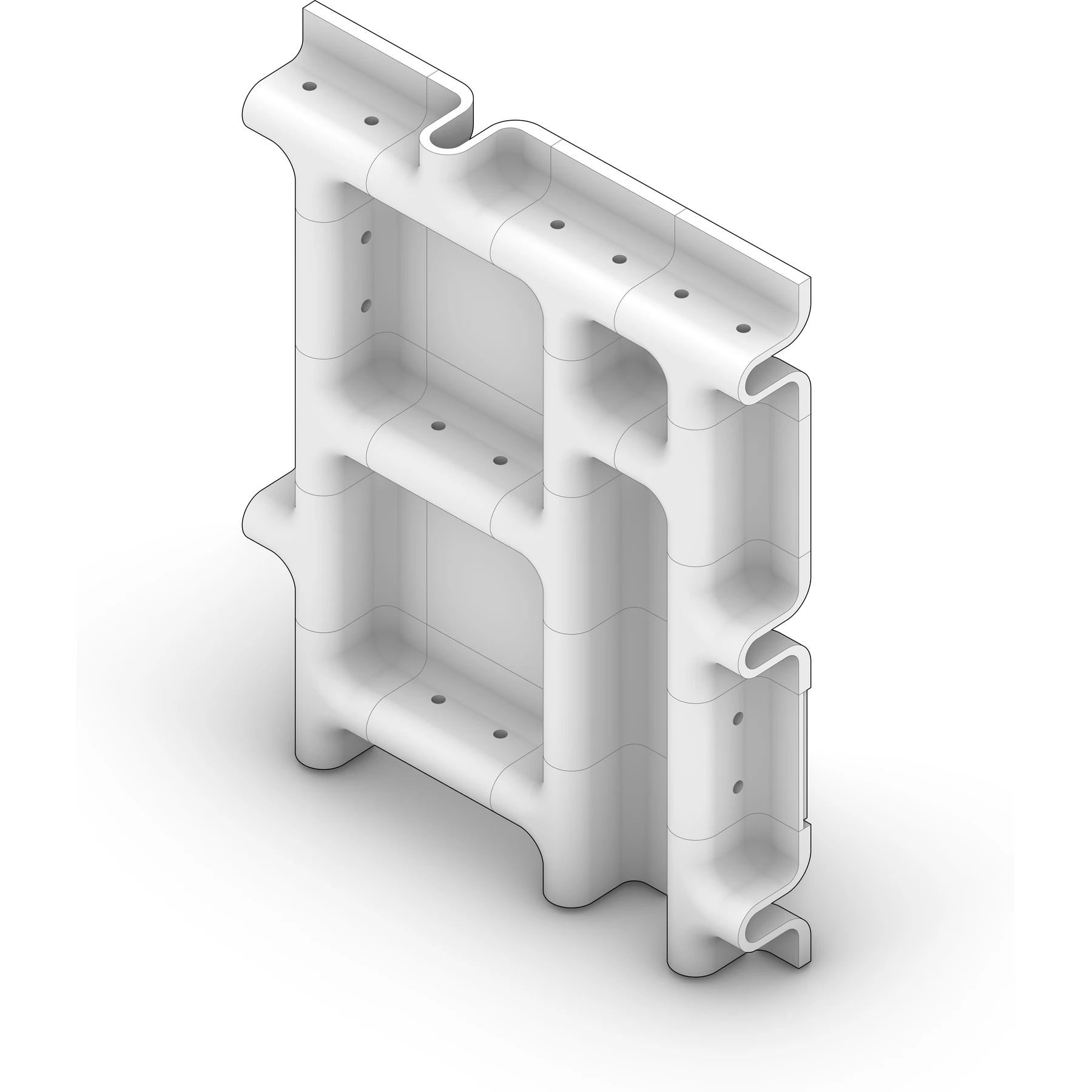

Rendered view of the assembled Lithoid habitat surface, interlocking concrete ripple components joined into a single continuous wall.
Fig. 08 — Assembled habitat surface, rendered.

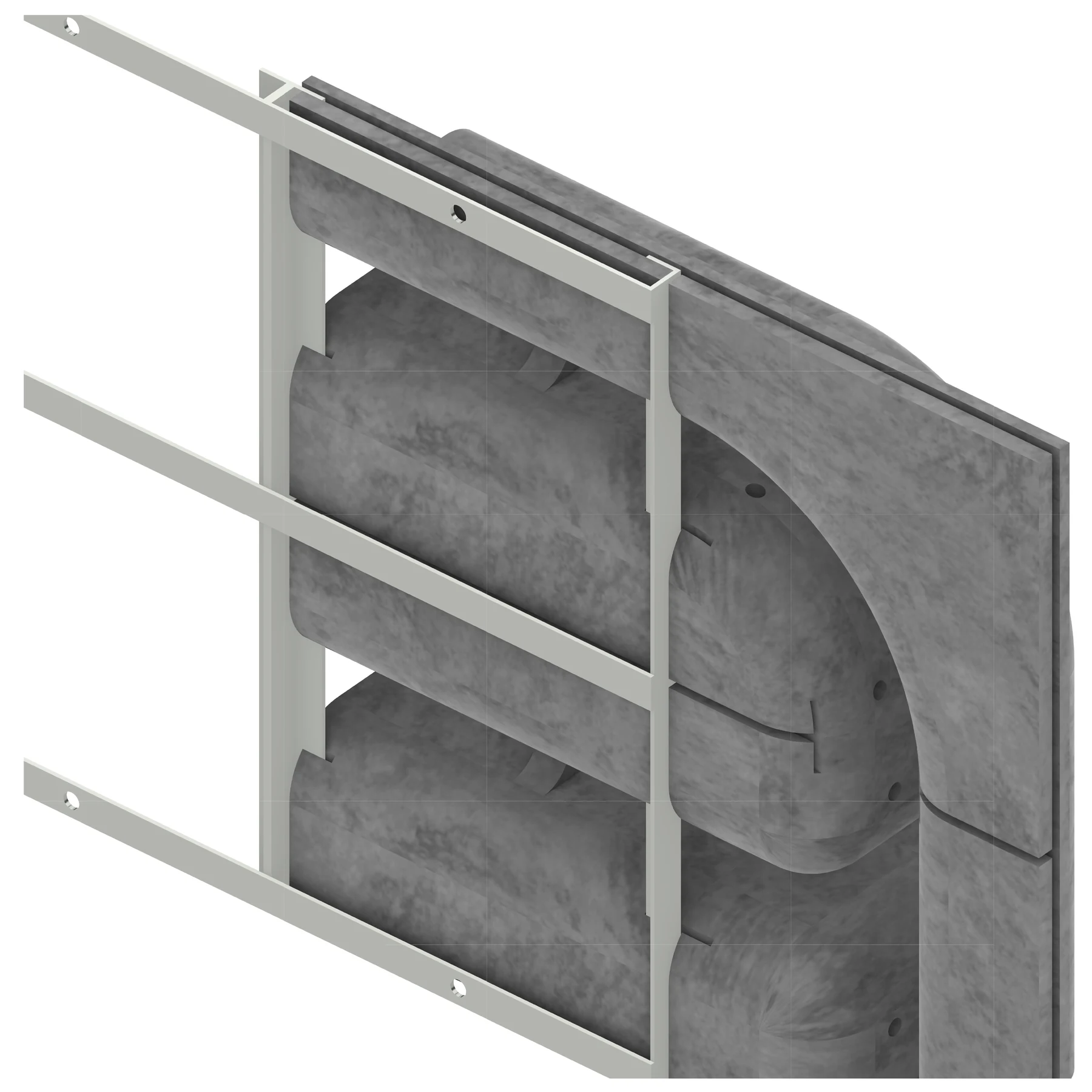

Close-up render of mottled grey concrete ripple components mounted on a pale metal rail frame with bolt holes, a plate set behind them.
Fig. 09 — Rail mounting system: components slip onto the rail in any orientation.
Assembly

The pieces mount on a rail system, and the plate may be slipped onto the rail in any orientation, which allows a complex, free-form facade rather than a repeated tile. Each piece registers on the rail and to its neighbors through pin holes, so the frame grows by accretion, one module at a time. Mounted between posts along the shoreline, the finished surface stands as a habitat wall at the water's edge.

04 / Site
Location

The site is River Park, Chicago, where the North Shore Channel joins the North Branch of the Chicago River. The panels sit on the east bank within sight of the River Park canoe and kayak launch, along the 0.25 mi reach between W Foster Ave and W Argyle St. Earlier site studies looked for vertical spaces near water — retaining walls, a pumping station and bridges — the kinds of structure the swallows already colonize.

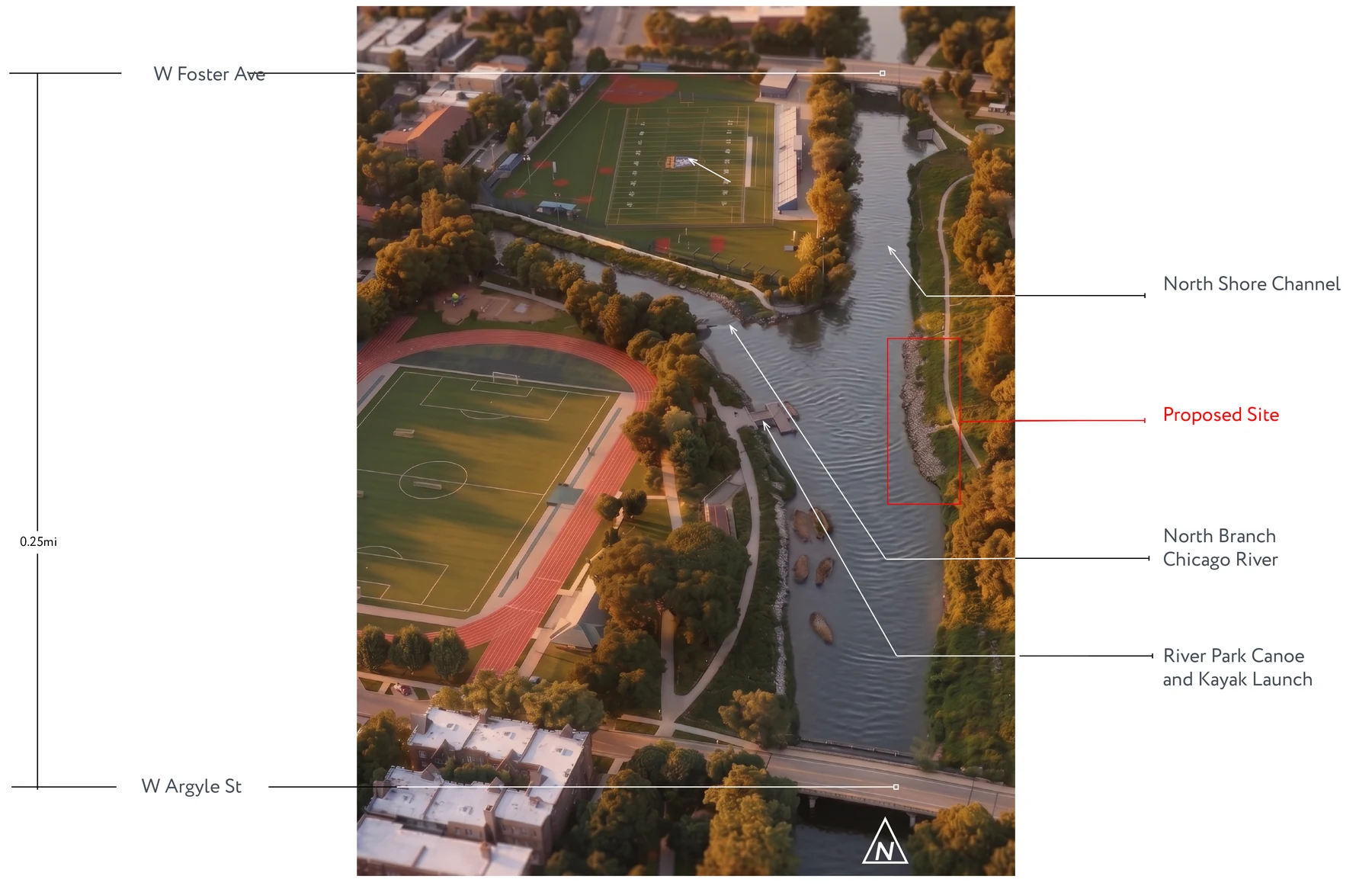

Oblique aerial of River Park where the North Shore Channel joins the North Branch Chicago River, with the proposed site boxed in red on the east bank.
Fig. 10 — Proposed site at River Park, between W Foster Ave and W Argyle St.
Orientation

Wallacei X rotated the panel against a Ladybug incident-radiation model, giving 4839.3 kWh/m² facing north (0°), 5200.8 kWh/m² facing west (90°) and east (270°) and 5116.7 kWh/m² facing south (180°). The optimum is south-facing (180°) at 5116.7 kWh/m², and the north face, though lowest, needs care to prevent convection to the rear of the panel. Mud nests act as a thermal heat sink, and a site that looks ideal can lethally overheat the chicks — an ecological trap (Imlay, Nickerson and Horn 2019, Canadian Journal of Zoology 97(5): 429–435).

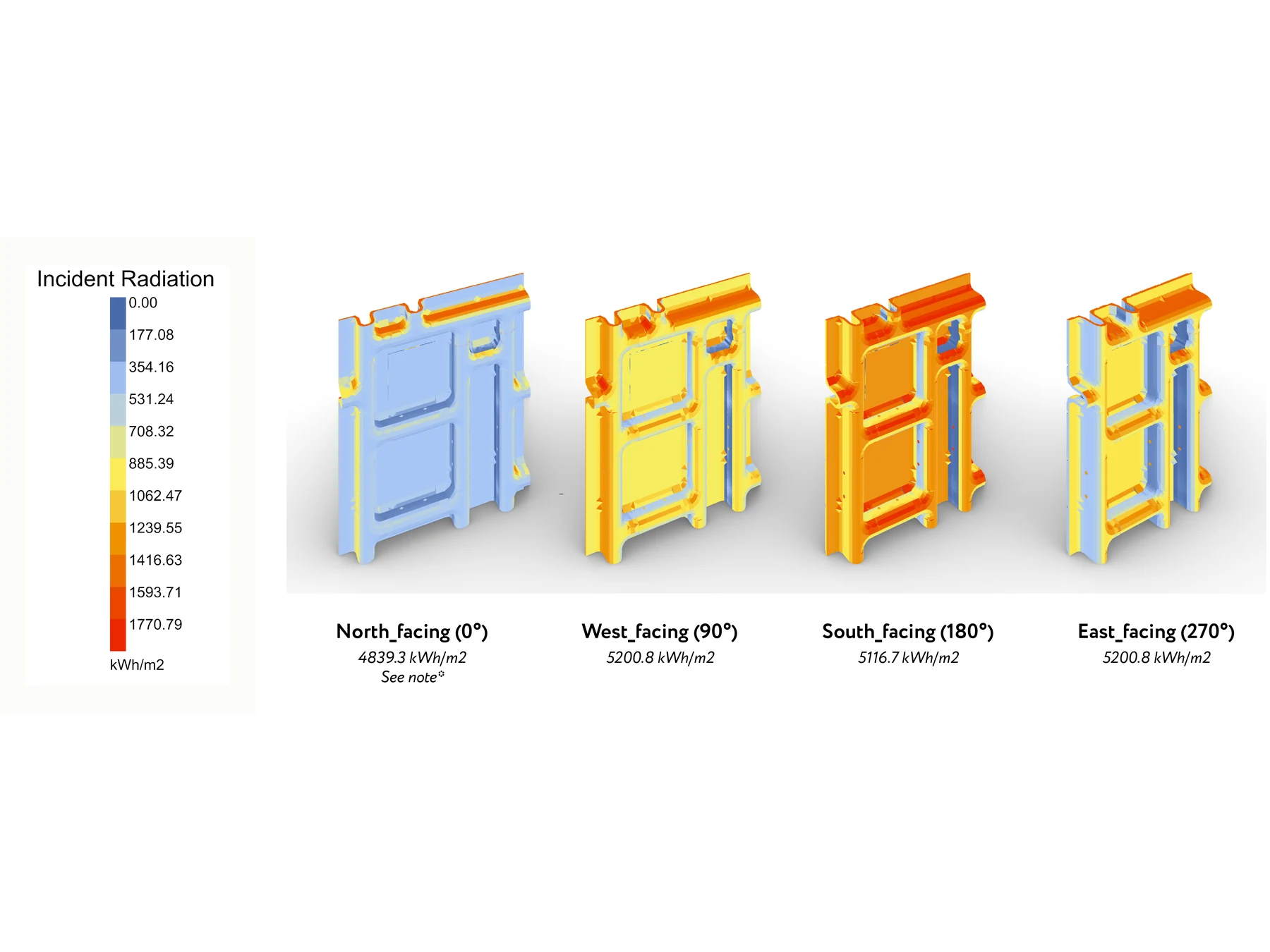

Four panel models in false color showing cumulative incident radiation facing north, west, south and east, with a blue-to-red legend in kilowatt-hours per square meter.
Fig. 11 — Cumulative incident radiation at four orientations, kWh/m².

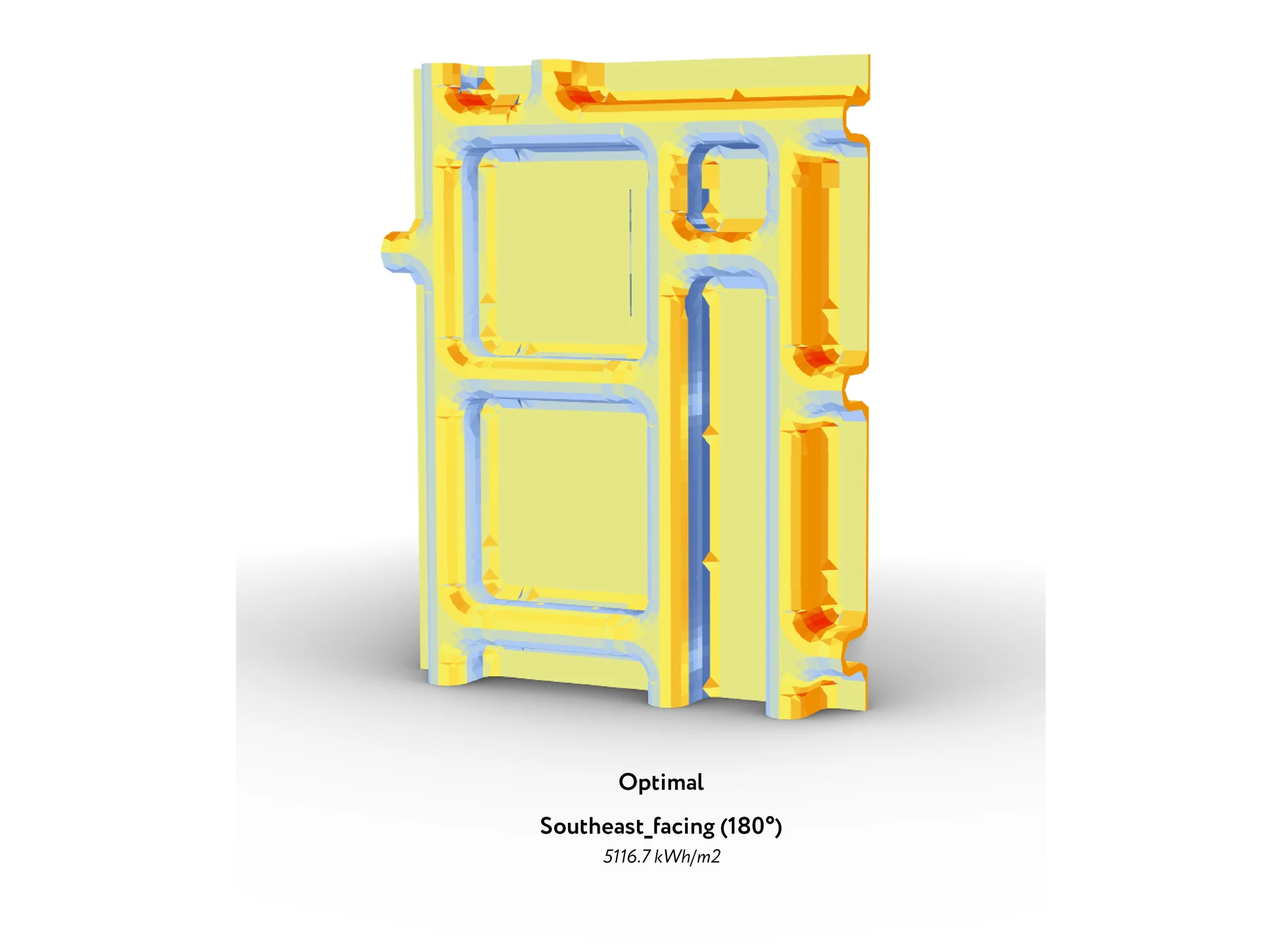

Lithoid panel model at its optimal orientation, colored by incident radiation, mostly yellow with orange edges and blue in the recesses.
Fig. 12 — Optimal orientation, south-facing (180°), 5116.7 kWh/m².
05 / Manufacturing
Molds

Each module is cast in its own multi-part mold, modeled around the finished piece and 3D-printed on a Bambu Lab printer. The molds come apart in nested layers: inner shells that carry the ripple, edge pieces, outer housings and pins that register the parts and form the pin holes. The Plate's tray mold has the ripple noise pattern printed into its floor.

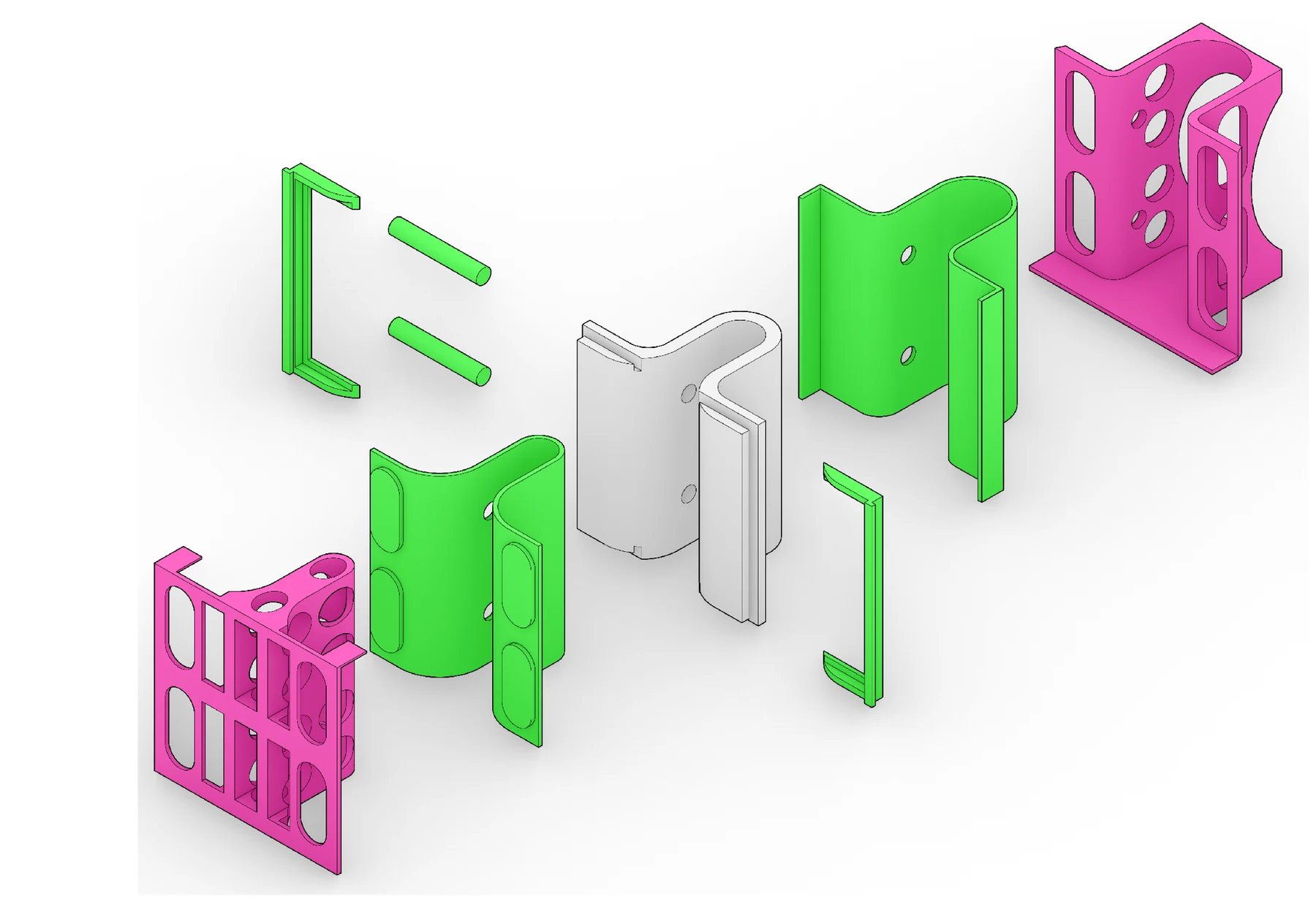

Exploded axonometric of the Module 1 mold, with a white concrete pipe at the center, green shells and pins and magenta perforated housings at each end.
Fig. 13 — Module 1, "Burrito": exploded mold around the standard pipe.

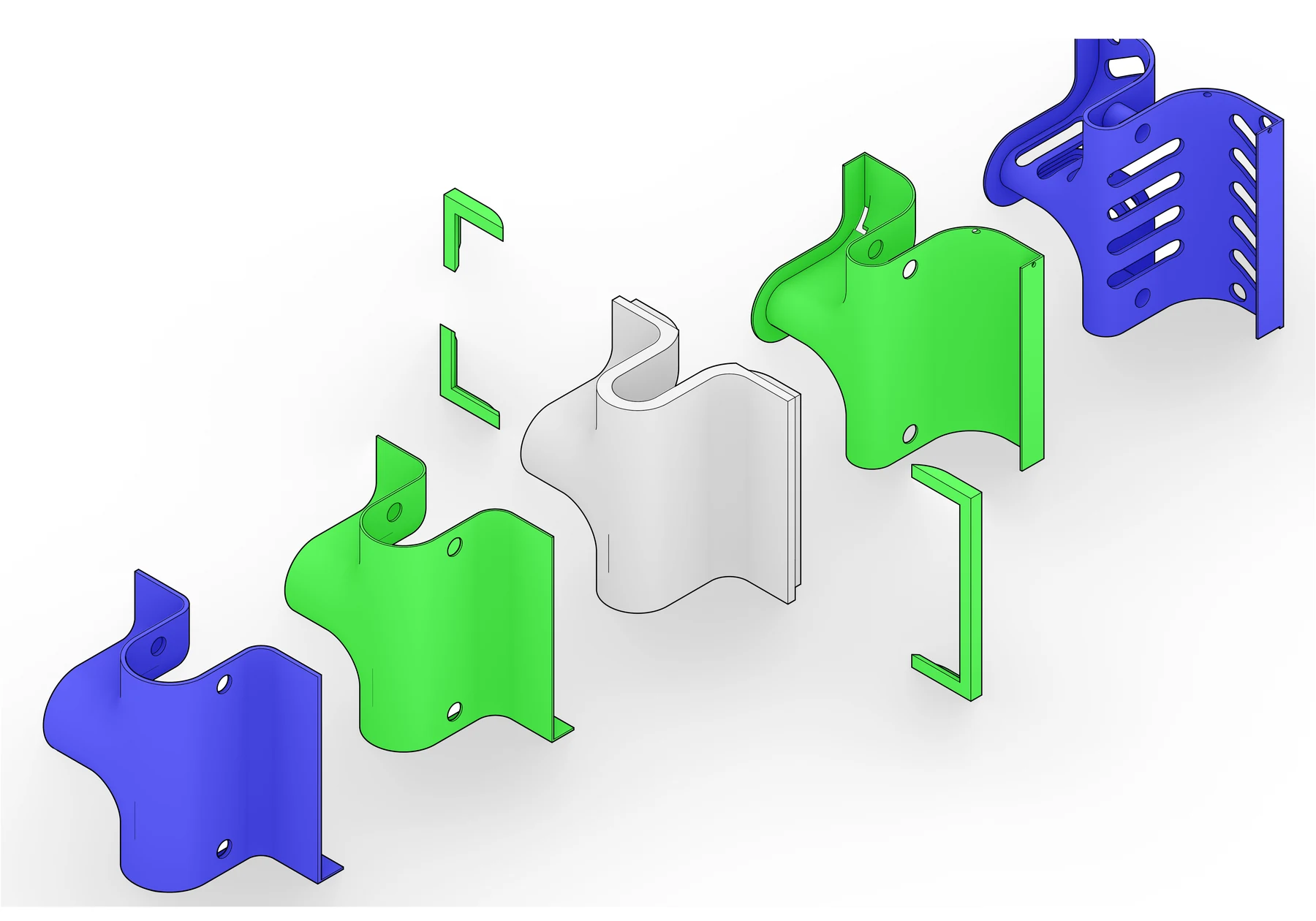

Exploded axonometric of the Module 2 mold, with a white concrete T-junction surrounded by green inner shells, green edge pieces and blue outer housings.
Fig. 14 — Module 2, "T-Bone": exploded mold for the intersection piece.
Casting

The molds are clamped with bar clamps and wooden strips, filled with concrete and left to set. The printed parts are then pulled apart and the casting comes away with its ripple and pin holes in place. The first cast test panel, at the second milestone, showed that the relief could run continuously across tile joints, and the module castings that followed carry it in one piece.

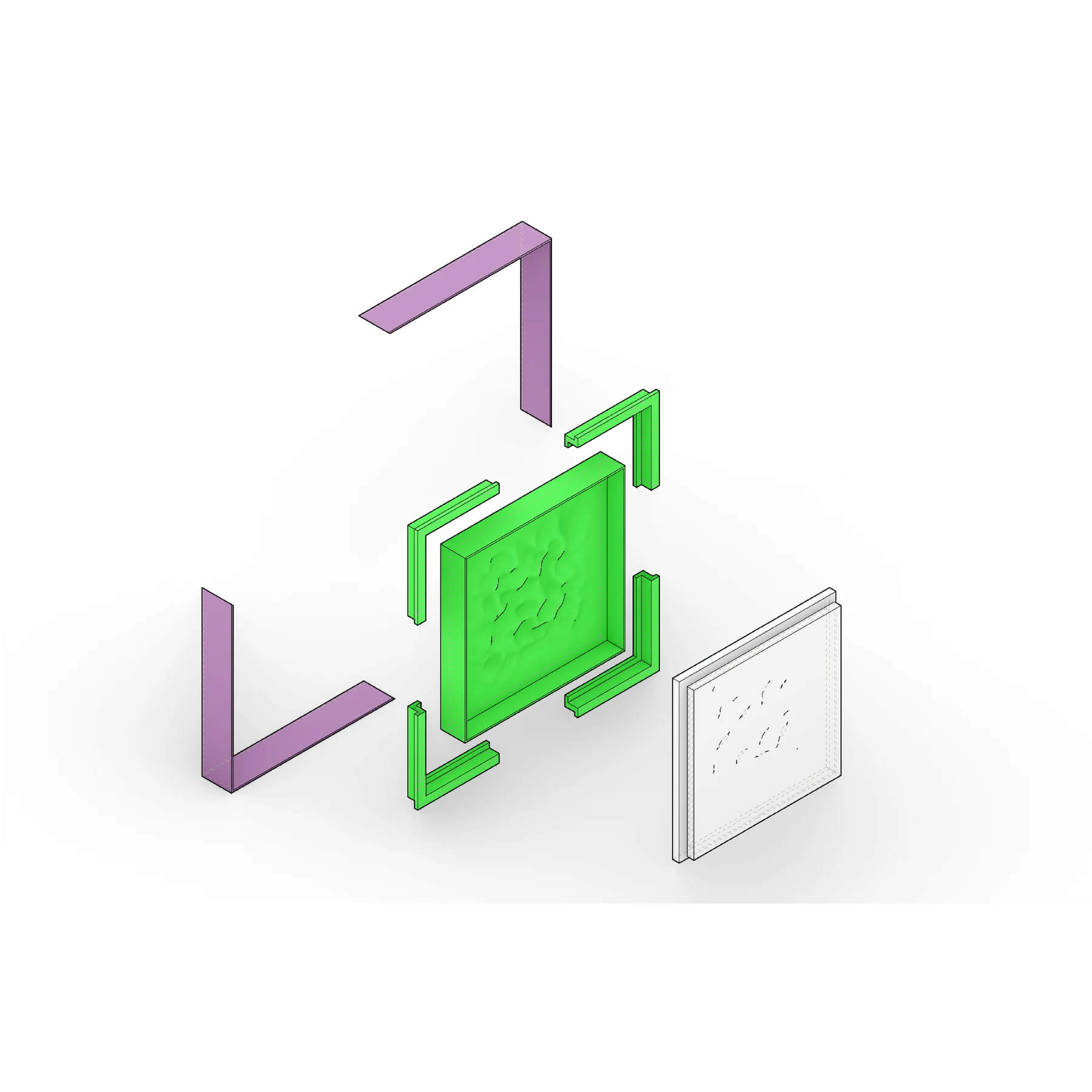

Exploded axonometric of the Module 3 mold, with a green tray carrying a rippled noise-pattern floor, corner rails, mauve frame pieces and the finished white plate.
Fig. 15 — Module 3, "Plate": exploded mold with the ripple noise tray.

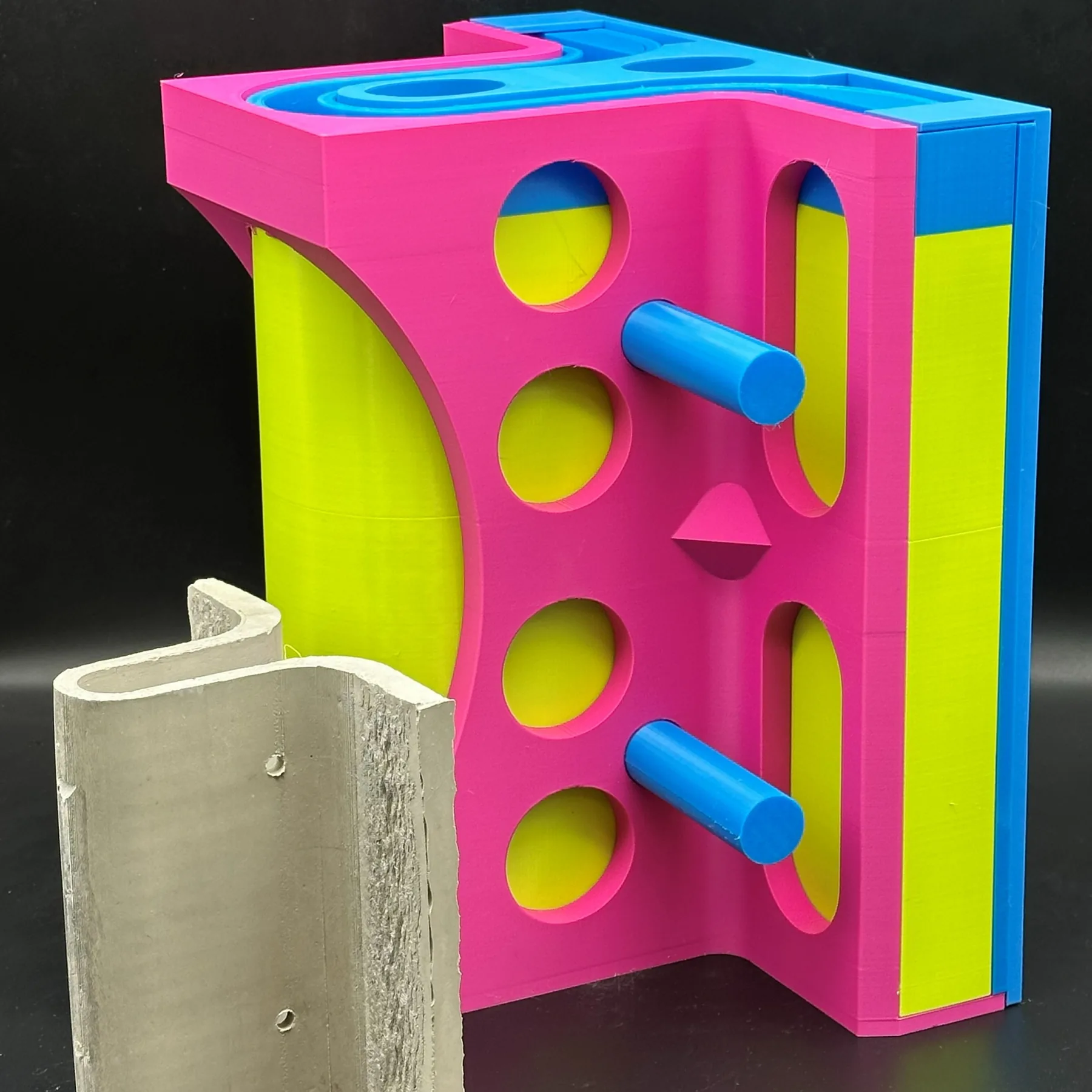

Assembled magenta, blue and lime-green 3D-printed mold with round and slotted windows, a demolded grey concrete pipe casting with pin holes standing in front.
Fig. 16 — 3D-printed Module 1 mold beside its demolded concrete casting.
Result

Lithoid ends as a working fabrication system and a proposal for the riverbank. Three modules — "Burrito", "T-Bone" and "Plate" — interlock on a rail into a free-form habitat surface, each cast in concrete from its own 3D-printed mold. Set on the east bank at River Park and turned south-facing (180°), the panel offers cliff swallows a vertical surface near water with cover, elevation and room for a colony.

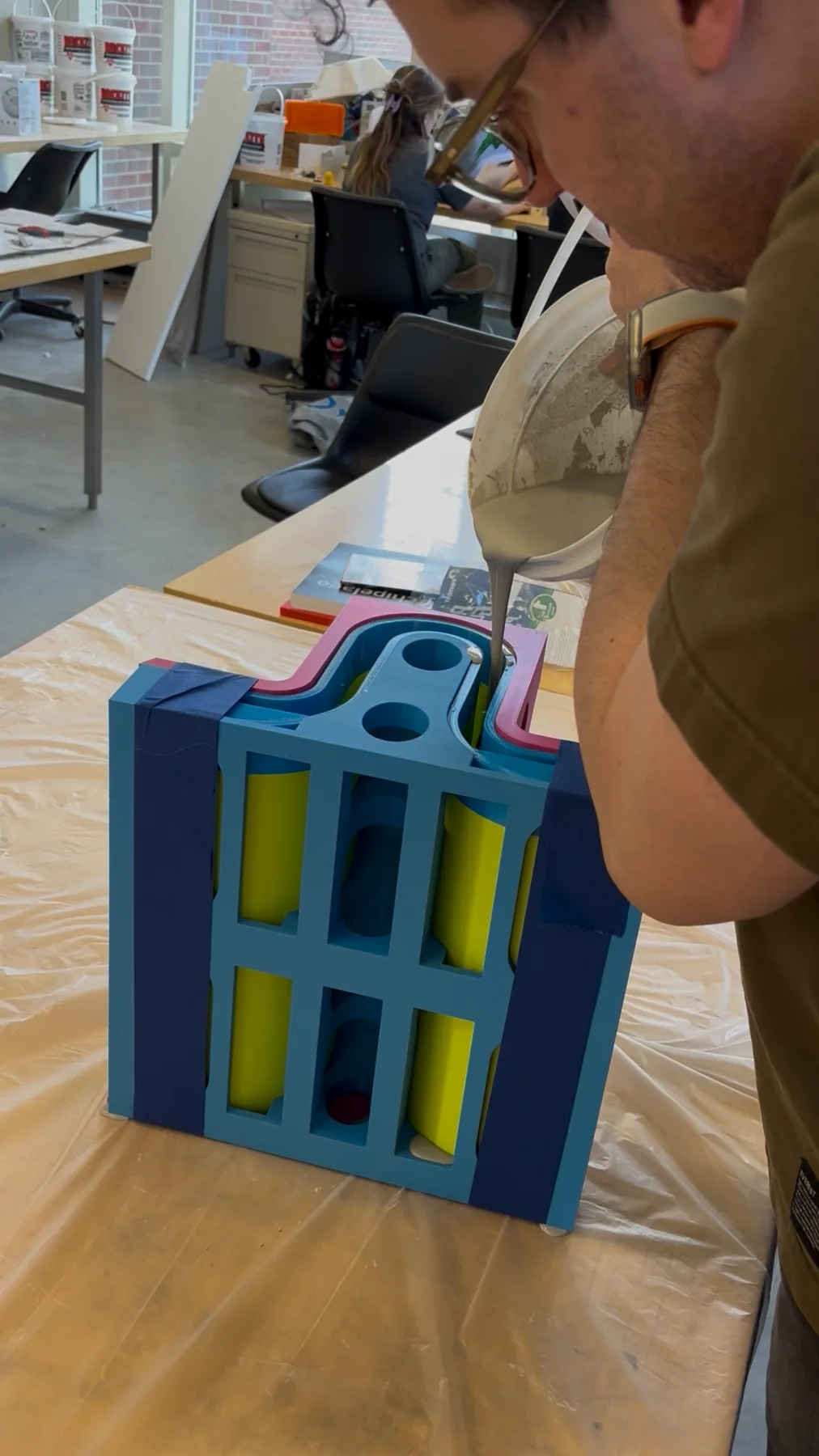

Concrete being poured into the 3D-printed Module 3 tray mold, its layered parts held tight with clamps.
Fig. 17 — Pouring concrete into the clamped Module 3 mold.

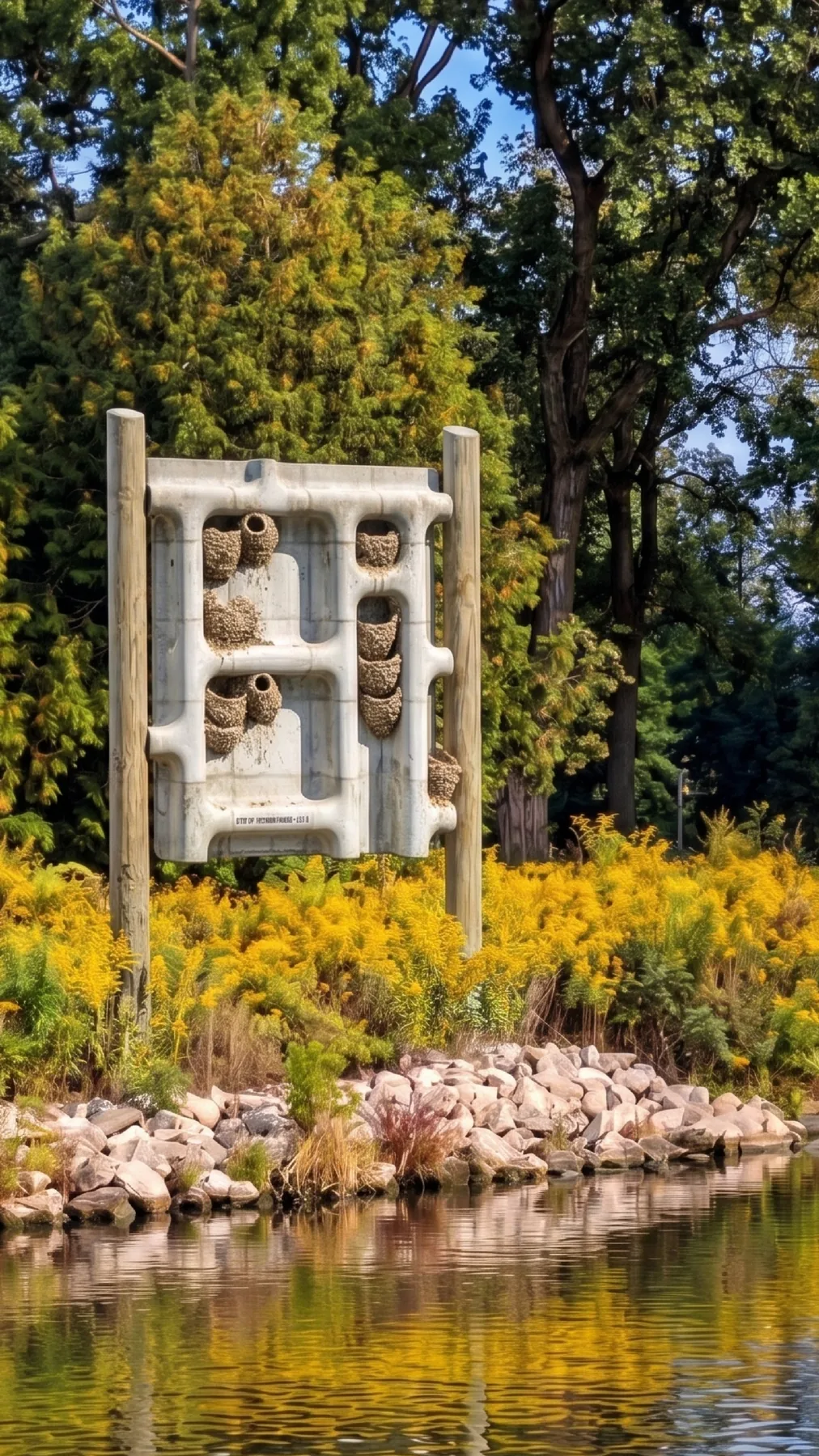

Lithoid panel of white concrete ripple frames between two timber posts on a rocky riverbank among yellow goldenrod, with mud nests in its cells.
Fig. 18 — Visualization: a panel with mud nests in the goldenrod at the water's edge.
